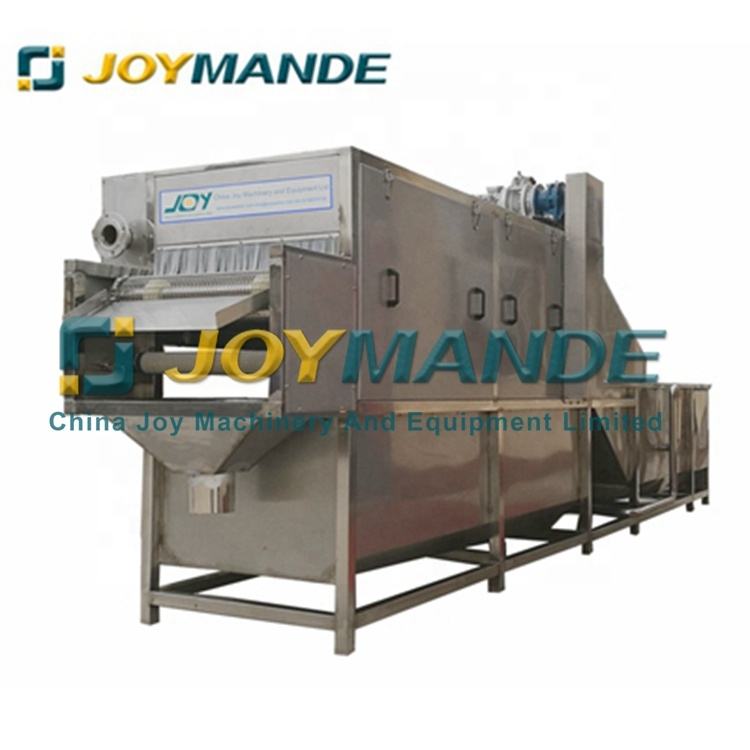

Good Performance Industrial Ginger Washing And Drying Machine

Brief Introduction:

The ginger washing machine is our special manufactured equipment suitable for cleaning ginger with high capacity and no damage to the big gingers.

The machine is coming with air bubble cleaning part and high pressure spraying parts.

Also configured with filter conveyor which could take out the sand and dust.

After the air bubble cleaning part, there are high pressure spraying cleaning nozzles which could wash every angle of the gingers with turning over conveyor.

This assures thoroughly cleaning and better effect.

With double filters system, the water could be cycle used.

The spraying rinsing part should be connected to water supply and keep rising.

Good Features:

 The special ginger washing machine is configured with 2 parts cleaning:

1.Air bubble washing to wash and remove most of the sand, dirt and stones etc.

2. High pressure spraying cleaning part to clean the hard dirt etc attached on the ginger.

This part is configured with double layer conveyors: the top one is used for transfer the gingers while high pressure sprayed cleaning and the bottom conveyor for collecting the washed off dirt,dust,skins etc to release and will not be recycled in the water.

The water could be recycled used with good cleaning effect.

Item

Spec.

Model

JME6500

JME8000

JME10000

Motor

2.2kw

2.2Kw

2.2kw

Water pump

11kw

22kw

22kw

Air pump

3KW

3KW

3KW

Water consumption

3-4m3/h

Conveyor width

800/1000/1200mm

Water pressure

4-6 bar

Capacity

2-3 ton/h

5-7 ton/h

10 ton/h

Machine size

6500x1680x2200(mm)

8000x1680x2200(mm)

10000x1680x2200(mm)

China Joy Machinery and Equipment Limited is a professional manufacturer of food processing machines and high pressure cleaning equipment.

We are a comprehensive enterprise which integrates research,development,manufacture,installation and

maintenance.We have advanced equipment,rich experience,highly-qualified scientific researchers and professional staff members for the after-sales service.

We specialized in designing and producing fruit and vegetable processing line which is including fruit and vegetable washing machine,drying machine,peeling machine,slicing machine,chopping machine,sorting machine,mixing machine,and potato chips production line,meat processing line and high pressure cleaning pump,hydro test pump etc.

Our products had been exported to more than 60 countries,all the products had been gained high praise from the customers at home and abroad.

We will continue to follow the policy of “quality first,reputation first,customer first”.And sincerely hope to cooperate with much more customers all over the world.
