Plastic bakery tray plastic tray washing machine tray washer

FOB Reference Price:Get Latest Price
$5,000.00 - $16,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JME4500 JME5500 JME6000 JME8000 JME10000 JME12000
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Model customization (Min. Order: 1 Sets)
Voltage Customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
JOYMANDE
Type:
Washer
Voltage:
380V/415V/440V or customized
Power:
10-80kw
Weight:
1500kgs
Dimension(L*W*H):
5500x1500x1600mm
Certification:
CE
Warranty:
1 year, 1 Year
Product Name:
Crate washer, Tray washer
Application:
Trays, crate, basket, bins, pallet washing and drying
Material:
304 Stainless steel
Washing Capacity:
300-1000pcs/h
Working mode:
Automatic
Washing size:
All sizes
Washing pressure:
5-6 bar
Heating mode:
Electric or steam
Certificate:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month Plastc bakery tray plastic tray washing machine tray washer
Packaging & Delivery
Packaging Details
Export standard plywood case with plastic film to prevent water and rust.
Export standard wooden case.
Port
Tianjin,Qingdao,Shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 To be negotiated
Video Description

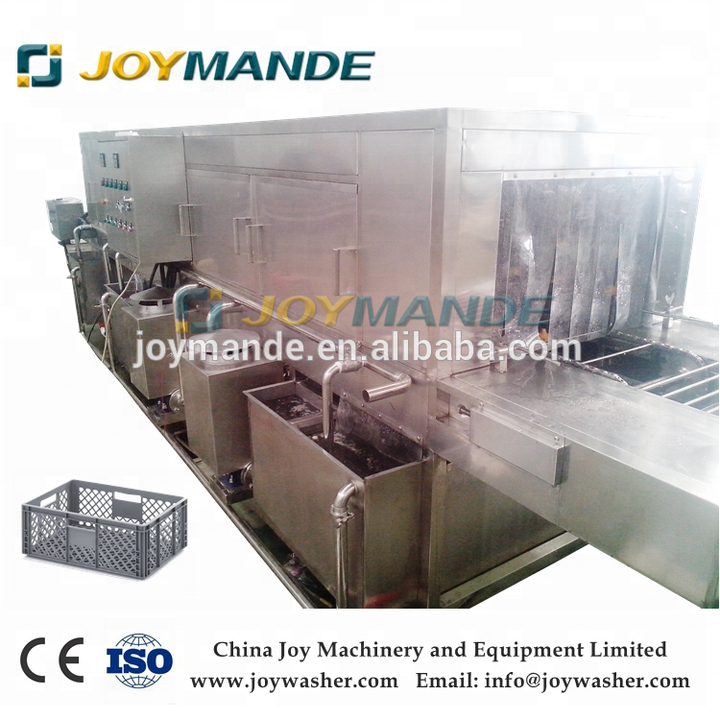

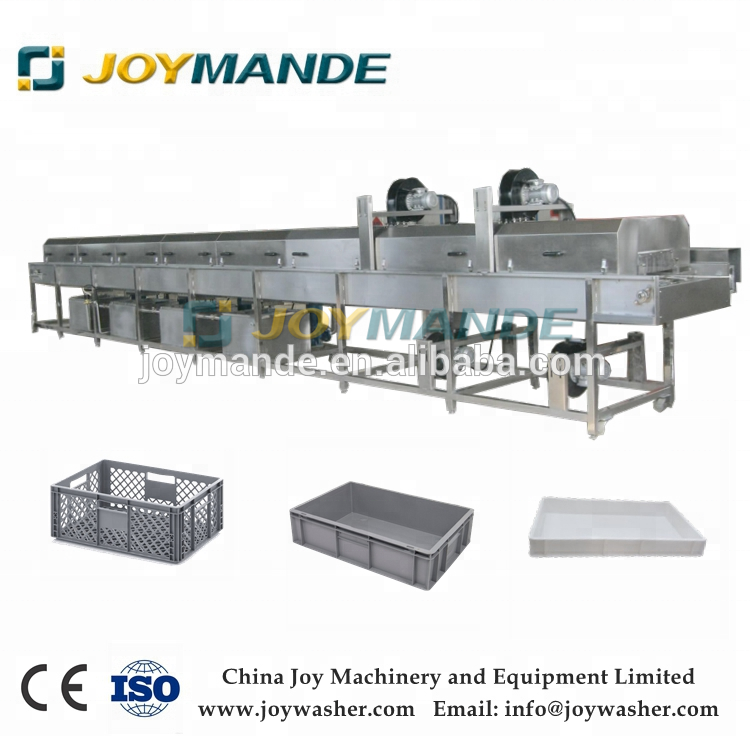

China Joy Machinery and Equipment Ltd supply crate washer / tray washer which could handle most of the vast variety of sizes, shapes of plastic crate /boxes/trays/basket/plastic pallet/ plastic cage/barrel etc.

The tray washer is with capacities from 150-1800 crates/ hour depending on the degree of soilage.



The crate washer machine consist of 2-5 separate washing systems:

1. Hot alkaline water cleaning or hot water cleaning(0-120°C adjustable)

2. Hot water cleaning or cold water cleaning (0-120°C adjustable)

3. Cold water rinsing part

Each part is configured with separate water tank, water pump and double filter trays to prevent any blockage. The water could be re-circulated used with low water consumption.

The entire machine is built up in AISI 304



Options:

- Pre-rinse section

- Heating mode: Steam, hot water, gas and electric

- Overhead conveyor for one man operation

- Disinfection

- Automatic destacking, drying and stacking



Unique characteristics:

- Manual variable top and side guides for handling of multiple crate sizes

- Suitable for various industry and plastic boxes/crates/trays/baskets/bins etc

- Plug and play solution

- Easy to operate and maintain

- 24x360 days working time available

- Long service time

- Environmental friendly-low water and detergent consumption

- Cross nozzles to ensure that all surfaces are cleaned

- Stainless steel nozzles

- Double filter to prevent any blockage in the pump or nozzles



Model

Cleaning Units

Motor

power

Water Pumps

Capacity

Machine

size

JME4500

2

0.75kw

4kw*2PCS

200-300pcs/h

4000x1500x1700mm

JME5500

3

0.75kw

4kw*3PCS

400-800pcs/h

6000x1500x1700mm

JME8000

4

0.75kw

4kw*4pcs

800-1200pcs/h

8000x1500x1700mm

JME10000

5

1.5kw

5.5kw*2, 4kw*3PCS

1500-1800pcs/h

10000x1500x1700mm

Remark

Hot water heating device: Steam or 27kw electric heating device.
